Chapter 5: Navigation and Routing

Your Task Tracker Mobile app now has styled screens and components—but it’s still stuck on a single screen.

In this chapter, we’ll tackle one of the most essential parts of mobile app development: Navigation.

You’ll learn:

• Why web-style routing doesn’t work for React Native
• How React Navigation (the de facto standard) works
• Setting up Stack, Tab, and Drawer navigation
• Passing data between screens
• Navigating with parameters and props
• Navigating programmatically (after a button click)

By the end of this chapter, your app will support multi-screen navigation.

5.1 How Navigation in React Native Differs from the Web

In React.js, you’re used to React Router DOM with concepts like URLs and query params.

In React Native:

• There’s no browser history,
• No URL bar,
• Navigation is based on screen stacks, tabs, and gestures—just like native iOS/Android apps.

5.2 Introducing React Navigation

The most popular library for navigation in React Native is:

npm install @react-navigation/native

Also install dependencies for mobile platforms:

npx expo install react-native-screens react-native-safe-area-context react-native-gesture-handler react-native-reanimated

For Stack navigation:

npm install @react-navigation/native-stack

For Tab navigation (later in the chapter):

npm install @react-navigation/bottom-tabs

5.3 Setting Up Navigation Container

In your App.jsx:

import * as React from 'react';
import { NavigationContainer } from '@react-navigation/native';
import { createNativeStackNavigator } from '@react-navigation/native-stack';

import TaskListScreen from './src/screens/TaskListScreen';
import TaskDetailScreen from './src/screens/TaskDetailScreen';

const Stack = createNativeStackNavigator();

export default function App() {
  return (
    <NavigationContainer>
      <Stack.Navigator>
        <Stack.Screen name="TaskList" component={TaskListScreen} />
        <Stack.Screen name="TaskDetail" component={TaskDetailScreen} />
      </Stack.Navigator>
    </NavigationContainer>
  );
}

5.4 Creating the Second Screen: TaskDetailScreen

File: src/screens/TaskDetailScreen.jsx

import React from 'react';
import { View, Text, StyleSheet } from 'react-native';

export default function TaskDetailScreen({ route }) {
  const { task } = route.params;

  return (
    <View style={styles.container}>
      <Text style={styles.title}>{task.title}</Text>
      <Text style={styles.description}>{task.description}</Text>
    </View>
  );
}

const styles = StyleSheet.create({
  container: {
    flex: 1,
    padding: 20,
    backgroundColor: '#f0f0f0',
  },
  title: {
    fontSize: 24,
    fontWeight: 'bold',
  },
  description: {
    fontSize: 16,
    marginTop: 10,
  },
});

What’s Happening Here?

We’re receiving route parameters (the task data) passed from the first screen.

5.5 Navigating Between Screens with Parameters

Let’s update our TaskCard to support navigation.

Modify TaskCard.jsx:

import React from 'react';
import { View, Text, StyleSheet, TouchableOpacity } from 'react-native';
import Colors from '../constants/Colors';
import { useNavigation } from '@react-navigation/native';

export default function TaskCard({ task }) {
  const navigation = useNavigation();

  const handlePress = () => {
    navigation.navigate('TaskDetail', { task });
  };

  return (
    <TouchableOpacity onPress={handlePress}>
      <View style={[styles.card, { backgroundColor: Colors.primary }]}>
        <Text style={styles.title}>{task.title}</Text>
        <Text style={styles.description}>{task.description}</Text>
      </View>
    </TouchableOpacity>
  );
}

const styles = StyleSheet.create({
  card: {
    padding: 15,
    marginVertical: 8,
    marginHorizontal: 16,
    borderRadius: 8,
  },
  title: {
    color: '#fff',
    fontSize: 18,
    fontWeight: '600',
  },
  description: {
    color: '#fff',
    fontSize: 14,
    marginTop: 4,
  },
});

Update FlatList render in TaskListScreen.js

import React from 'react';
import { FlatList, SafeAreaView } from 'react-native';
import TaskCard from '../components/TaskCard';

const TASKS = [
  { id: '1', title: 'Write Chapter 5', description: 'Cover Navigation and Routing' },
  { id: '2', title: 'Add Task Detail Screen', description: 'Show task description' },
];

export default function TaskListScreen() {
  return (
    <SafeAreaView style={{ flex: 1 }}>
      <FlatList
        data={TASKS}
        keyExtractor={(item) => item.id}
        renderItem={({ item }) => <TaskCard task={item} />}
      />
    </SafeAreaView>
  );
}

5.6 Adding Tab Navigation

Now let’s add a Bottom Tab Navigator for switching between different main screens (e.g., All Tasks vs Completed Tasks).

Step 1: Install Tabs Package

npm install @react-navigation/bottom-tabs

Step 2: Update App.js:

import * as React from 'react';
import { NavigationContainer } from '@react-navigation/native';
import { createBottomTabNavigator } from '@react-navigation/bottom-tabs';
import TaskListScreen from './src/screens/TaskListScreen';
import CompletedTasksScreen from './src/screens/CompletedTasksScreen';

const Tab = createBottomTabNavigator();

export default function App() {
  return (
    <NavigationContainer>
      <Tab.Navigator>
        <Tab.Screen name="All Tasks" component={TaskListScreen} />
        <Tab.Screen name="Completed Tasks" component={CompletedTasksScreen} />
      </Tab.Navigator>
    </NavigationContainer>
  );
}

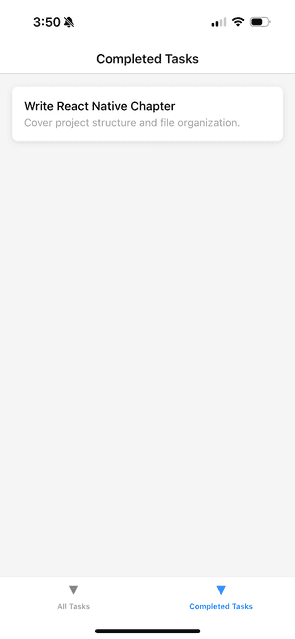

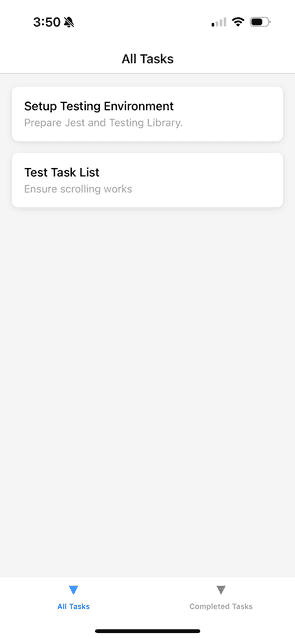

Now: Your app shows bottom tabs for navigation.

5.7 Combining Stack and Tab Navigation

In real apps, you’ll often nest Stack Navigators inside Tab Navigators.

Example architecture:

NavigationContainer
├── TabNavigator
    ├── StackNavigator for Tab 1 (All Tasks)
    └── StackNavigator for Tab 2 (Completed Tasks)

We’ll build this pattern in a later chapter when adding more screens.

5.8 Programmatic Navigation

You can navigate from anywhere in your component tree using the useNavigation hook.

Example: Navigate after a Button Press

import React from 'react';
import { Button } from 'react-native';
import { useNavigation } from '@react-navigation/native';

export default function AddTaskButton() {
  const navigation = useNavigation();

  return (
    <Button
      title="Add New Task"
      onPress={() => navigation.navigate('TaskDetail', { task: { title: 'New Task', description: 'Newly created task' } })}
    />
  );
}

5.9 Navigation Errors and Fixes

Assignment

✅ Task:

1. Create a CompletedTasksScreen in /screens.
2. Add a tab for Completed Tasks.
3. Make each task in the completed list clickable, navigating to the detail screen.

Bonus: Pass a status field in the task object and display it in the detail screen.

Chapter Summary

You’ve learned:

• The difference between web routing and React Native navigation
• How to set up Stack Navigators and Tab Navigators
• How to pass data between screens
• How to navigate programmatically
• How to build a multi-screen, multi-tab navigation flow

What is Next?

In Chapter 6, we’ll jump into State Management Approaches for React Native:

• Context API
• Redux Toolkit
• State persistence with AsyncStorage

You’ll learn how to manage global task state, including adding, updating, and deleting tasks across screens.
